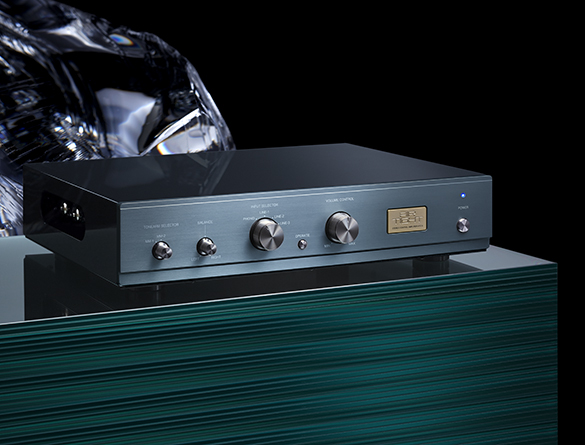

Air Tight ATC-5 försteg
111 000 SEK
Air Tights senaste försteg
Mer info eftersom den dyker upp
Kommer som standard med Alps fantastiska RK-501 pot!
- Betala säkert med kort
- Maila oss, vi svarar snabbt!
Beskrivning
Art.nr: 157110238
Valves employed:
12AX7 × 3, 12AT7 × 2
Phono equalizer input:
RCA/MM × 2
Input impedance:
47kΩ（Gain 40dB）
Phono equalizer output:
RCA × 1
Output impedance:
Recommended load more than 47kΩ
Line input:
RCA × 3
Input impedance:
47kΩ (Gain 18dB)
Line output:
RCA × 2
Output impedance:
Recommended load more than 47kΩ
Output voltage:
20V(Load 100kΩ/1% distortion)
Line amplifier distortion:
THD 0.02%(1V/1kHz)
Frequency response Phono equalizer:
50Hz~20kHz(±0.2dB) /20Hz-2.5dB
Frequency response Line amplifier:
20Hz~100kHz-1dB
Power consumption:
50VA
Dimensions:
400(W) × 260(D) × 90(H)(tentative)
Weight:
9kgs(tentative)
