Beskrivning
Art.nr: 20638559

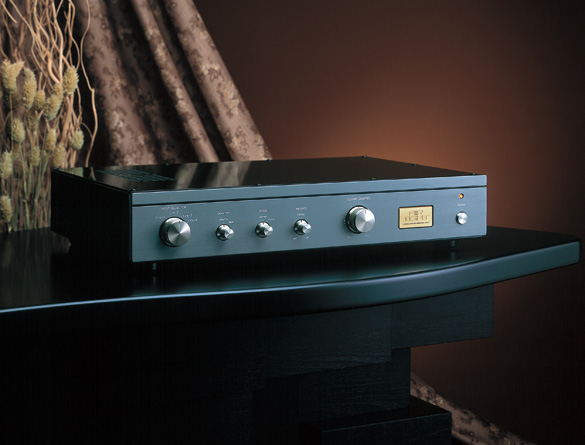

Air Tight ATC-3 Preamplifier features:
• SRPP line amp with reinforced buffer stage to assure good noise rejection, low output impedance and extended linearity
• Rich power supply featuring quick-recovery diode for high operational speed and low pulse noise
• Single-steel sheet with multi-layer enamel for high rigidity and low noise
• High-quality input/output jacks with detachable mains cord
• Optional "Alps" high-precision pot RK-501
Valves employed: 12AX7(ECC83) × 1, 12AU7(ECC82) × 2
Output voltage: rated 2V, max. 15V
Output impedance: 200 ohms
THD: less than 0.01%
Input sensitivity: 110mV (ouput 1V)
S/N ratio: less than 90dB (IHF-A weighted)
Dimensions: 430(W) × 325(D) × 90(H)mm
Weight: 8kgs
