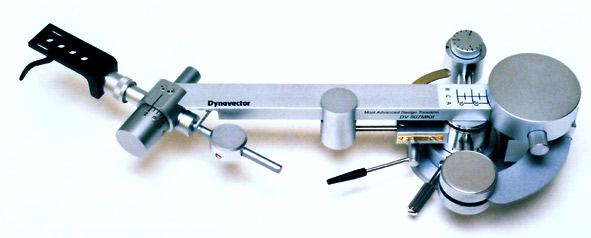

Dynavector DV-507MK2 tonarm

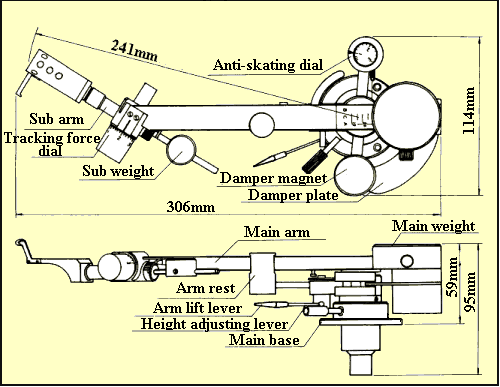

Senaste generationen av Dynavectors legendariska bi-axiala tonarm DV-507(mk2). Type Bi-Axis inertia controlled Dynamic and Eddy Current Damping Dynamic Balance type tone arm Overall length 306mm. With head shell: max 326 mm Effective length 241mm (i.e. tonearm pivot point to cartridge stylus point) Overhang 15mm Offset angle 21.5 degree Height 59mm lifts up to 92mm Height adjustment range 39mm-72mm at sub arm center Depth 36mm without connecting cable Optimum cartridge weight 15-35 grams, including headshell Horizontal tracking angle error -1.1 degree - +2.2 degree , 0 degree at inner band of record, 2.2 degree at outside Tracking force adjustment range 0-38 grams by 0.2 grams step Sensitivity Horizontal:less than 50 mgrams, Vertical:less than 40 mgrams Net weight 1,380 grams Output connection 5P connector Headshell connection EIA standards 4 Pin connector Accessary low resistance (0.046 ohms/m, 54pF/m) high quality arm cable, milled aluminium headshell weight 15.4 grams. mounting template for the arm overhang guage for the headshell
