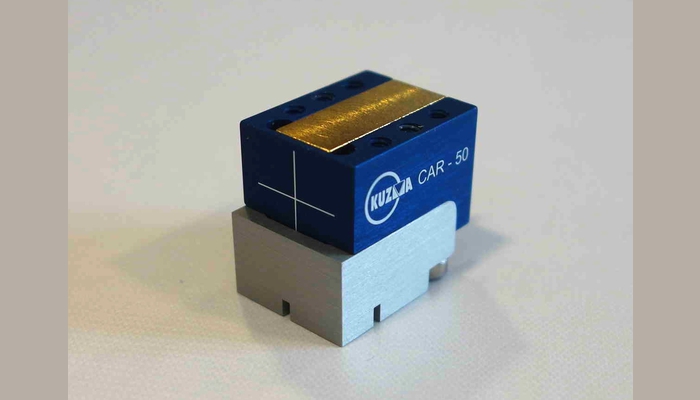

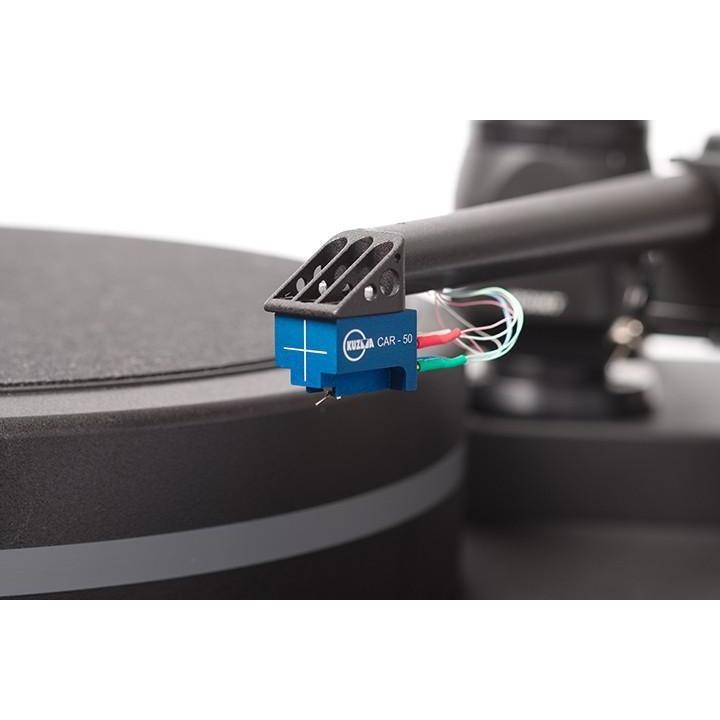

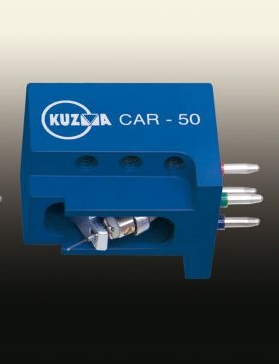

Kuzma CAR-50

Kuzma CAR cartridges are made to Kuzma's specifications by a Japanese company with over 50 years experience in this field. The same approach, with regard to design and manufacture, is used as in other Kuzma products. A combination of brass and aluminum used for the cartridge body shell gives rigid and inert support to the signal generator, allowing the diamond tip to extract musical information from the record grooves without distortion. This premium cartridge uses 4N pure silver coils, a sapphire cantilever and a micro-ridge stylus. Output is 0.3mV. Specifications Type Moving Coil Coil Wire 4N silver Cantilever material Sapphire Stylus Microridge Frequency Response 10Hz-45KHz Output Voltage 0.3mv Channel Balance <0.5dB - 1KHz Channel Separation >30dB - 1KHz Tracking Force 2.0gr Compliance 10x10-6cm/dyne Trackability >70μm/2.0gr Internal Impedance 6Ω Load Impedance >100Ω
