Beskrivning
Art.nr: 21600233

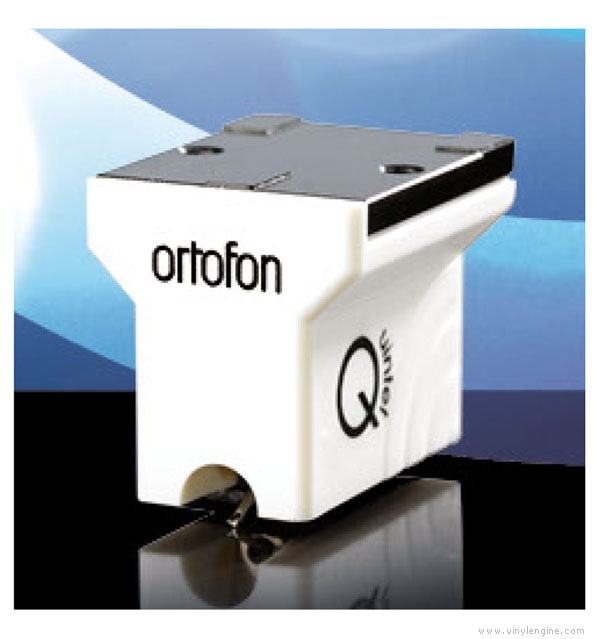

he Quintet Mono is a new true Mono from Ortofon.
It features Nude Elliptical r/R 8/18µm stylus that is a good solution for playing mono microgroove vinyl records. The Quintet Mono will track perfectly through even worn and damaged records and ensure the surface noise control.
Quintet Mono uses a strapped output to deliver the same output signal from both sets of pole pins. This effectively eliminates the need for mono-specific equipment, making it possible to enjoy true mono reproduction on any stereo playback system.
Quintet Mono is the best cartridge in the Quintet series to play monophonic records.
Technical data
Output voltage at 1 kHz 5 cm/sec 0.3 mV
Frequency range at -3 dB 20-25.000 Hz
Frequency response 20 Hz - 20 kHz +/-2.0 dB
Tracking ability at 315 Hz at recommended tracking force *) 70 μm
Compliance, dynamic, lateral 15 μm/mN
Stylus type Nude Elliptical
Stylus tip radius r/R 8/18 μm
Tracking force range 2.1-2.5 g (21-25 mN)
Tracking force recommended 2.3 g (23 mN)
Tracking angle 20º
Internal impedance, DC resistance 5 Ohm
Recommended load impedance >20 Ohm
Cartridge body material ABS/Aluminium
Coil wire material Pure 4-nines copper
Cartridge colour White
Cartridge weight 9 g
